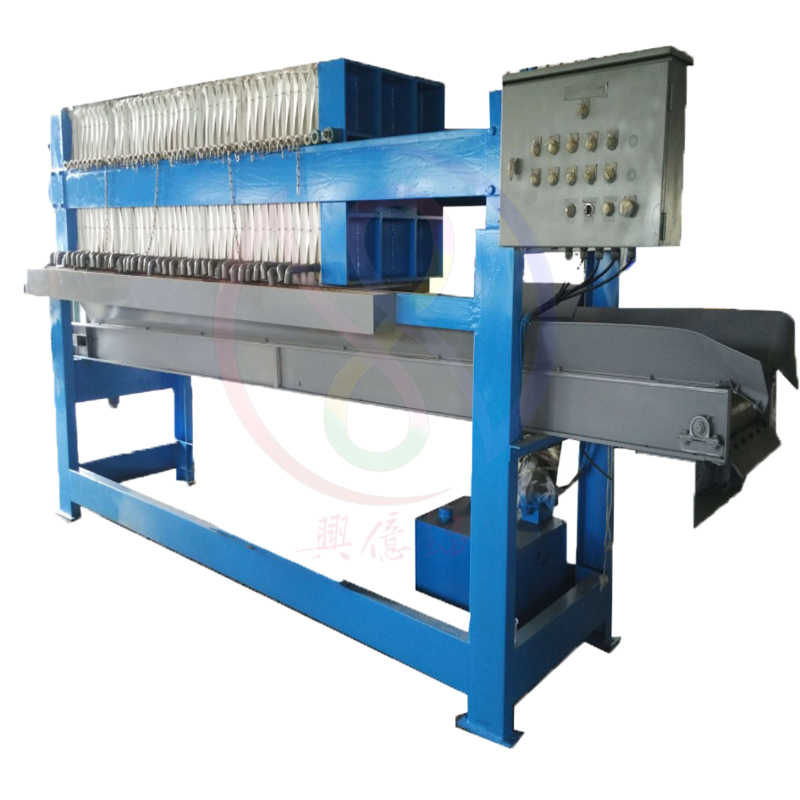

Plate and Frame Sludge Dewatering Machine
商品圖像
-
商品資訊
**Description of Plate and Frame Sludge Dewatering Machine**
The plate and frame sludge dewatering machine is a commonly used solid-liquid separation device, primarily applied in the sludge dewatering process of wastewater treatment plants. The main function of this equipment is to extract water from the sludge, reducing its volume and thereby lowering the costs of subsequent treatment and disposal.
**Working Principle:**
1. **Feeding**: After the sludge is mixed with a coagulant, it is pumped into the filter chamber between the filter plates and frames.
2. **Pressure Filtration**: Pressure is applied to the filter plates via a pump or hydraulic system, forcing the water in the sludge through the filter plates and out through the filter cloth. The solid particles are trapped by the filter cloth, forming a filter cake.
3. **Discharging**: After filtration is complete, the equipment automatically or manually opens the filter plates, discharging the filter cake. At this point, the filter cake has been dewatered, with significantly reduced water content and volume.
4. **Cleaning and Reuse**: The filter cloth requires regular cleaning to ensure effective filtration. After cleaning, the filter cloth can be reused.
**Advantages:**
- **High Dewatering Efficiency**: Effectively reduces the water content in sludge, thereby lowering subsequent treatment costs.
- **Simple Structure and Stable Operation**: The equipment is designed with a reasonable structure, ensuring stable and reliable operation, with easy maintenance.
- **Wide Applicability**: Suitable for various types of sludge, including municipal sewage and industrial wastewater.
Model Number of Filter Plates Filter Chamber Volume (L) Filter Plate Thickness (mm) Length (mm) Width (mm) Height (mm) PFSD-5010 10 3.5 50 270 75 170 PFSD-5020 20 7.2 50 330 75 170 PFSD-5030 30 11 50 390 75 170 PFSD-6310 10 5.5 60 280 95 180 PFSD-6320 20 11.5 60 340 95 180 PFSD-6330 30 17.5 60 400 95 180 PFSD-8010 10 9.5 80 315 125 200 PFSD-8020 20 19.5 80 375 125 200 PFSD-8030 30 29.5 80 435 125 200 PFSD-10020 20 30.5 100 400 155 220 PFSD-10040 40 62 100 550 155 220 PFSD-12040 40 93 120 530 185 240 -
